    Touchscreen UL94 Electronic Flame Test Chamber Equipment For Plastic Package

    UL94 Horizontal Vertical Flame Resistance Test Chamber for Plastic Package

    Product Description

    The Touch Screen UL94 horizontal vertical flame chamber machine is a testing equipment used to evaluate the flammability of materials used in electrical and electronic devices. It is designed to simulate the conditions of a small flame ignition source that may occur in these devices.

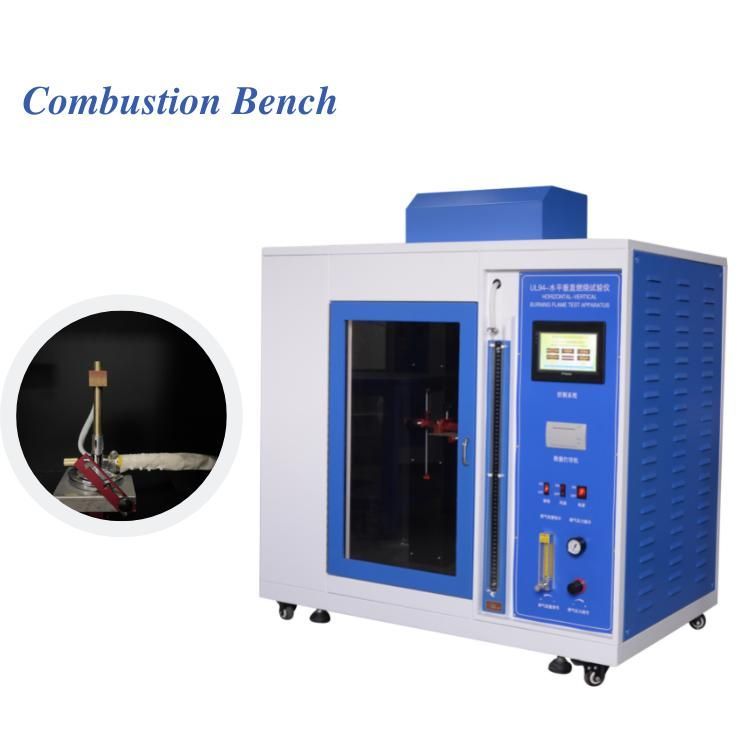

    The machine consists of a combustion chamber with a burner at the bottom, a specimen holder, and a control panel. The specimen holder can be adjusted to hold the test material in a horizontal or vertical position, depending on the orientation of the material in the device being tested.
    During the test, the specimen is exposed to a controlled flame for a specified period of time. The flame is then removed, and the specimen is observed for any signs of ignition or flame spread. The test is repeated several times with different specimens to determine the material's flammability rating.

    Factory Supply UL94 Horizontal Vertical Flame Resistance Test Chamber for Plastic


    Product Parameters
    Product NameUL94 Horizontal Vertical Flame Chamber
    Control modeTouch Screen control
    Outer box dimensions110*650*125(cm)
    Box volume≥0.5m³,With glass observation door
    Flame time0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
    Residual flame time0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
    Test gasMore than 98% methane/37MJ/m³ natural gas (coal gas is also available)
    Burner size parametersAdopt imported lamp, the inner diameter of spray can is 9.5±0.3mm, and the effective length of spray tube is 100±10mm
    Flame heightIt can be adjusted from 20mm to 175mm as required by standard
    Flowmeter105ml/min
    Gas leak detectionGas alarm device (optional)
    PowerAC220V, 50Hz

    Packaging & Shipping

    Factory Supply UL94 Horizontal Vertical Flame Resistance Test Chamber for PlasticFactory Supply UL94 Horizontal Vertical Flame Resistance Test Chamber for Plastic

    FAQ

    Factory Supply UL94 Horizontal Vertical Flame Resistance Test Chamber for Plastic
