High Accuracy Wire and Cable Burning Test Machine

Product Description

-The UL1581 Wire and Cable Burning Test Machine is a specialized equipment used to assess the flammability characteristics of wires and cables. This machine is designed to perform the burning test as per the UL1581 standard, which is a widely recognized test method for evaluating the fire resistance of wires and cables.
-The machine consists of a test chamber with controlled temperature and airflow, a sample holder, and an ignition source.During the test, the wire or cable sample is securely mounted in the sample holder and exposed to a controlled flame generated by the ignition source. The temperature and airflow conditions within the test chamber can be adjusted to simulate various real-life scenarios.

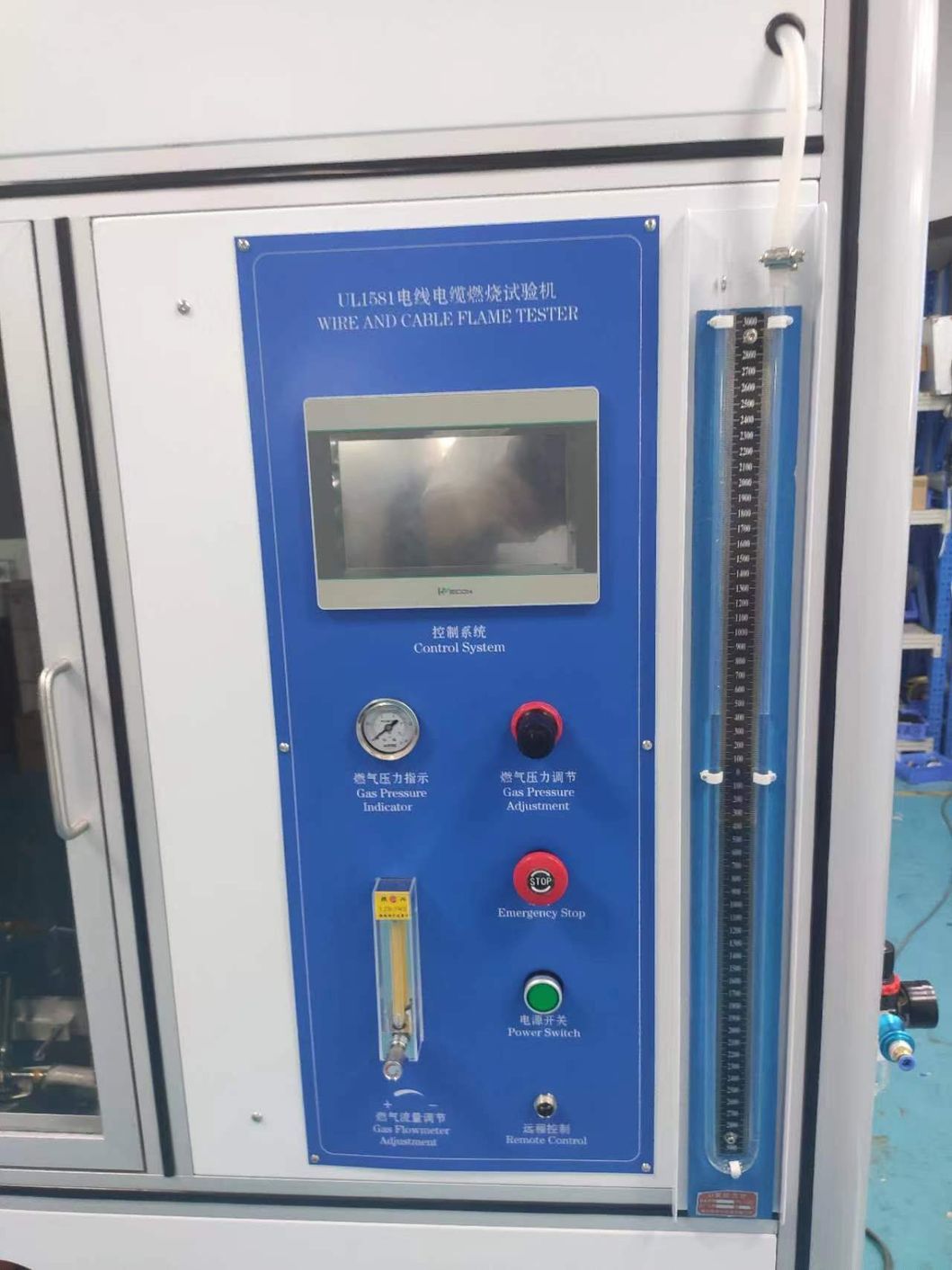

Detailed Photos

Product Parameters

Product Name	UL1581 Wire and Cable Burning Test Machine
Box volume	≥4.0 m³. There are lights in the box and the system is controlled by a switch or a switch outside the box
Timer	0-99 minutes and 99 seconds can be set, and the minimum resolution is up to 0.01s
Main fixtures	Test stand and burning torch
Test stand	Made of SUS304 stainless steel, divided into FT2 horizontal bracket and VW-1/FT1 vertical combustion test stand
Combustion blow torch	Imported blowtorch, meet the requirements of ASTM D5025-05
Standard power	500W
Diameter of fire nozzle	0.90±0.03mm
Length of fire nozzle	1.60±0.05mm
Inner diameter of nozzle	9.5mm
Height of nozzle from air inlet	100mm±10mm
Gas	At least 98% methane purity
Flow meter range	1000ml/min
