    150kgf Digital Rockwell Hardness Testing Machine Manual tester

    Ask Lasest Price
    Brand Name : GC
    Model Number : GC-HRS150
    Certification : ISO
    Price : Negotiated
    Payment Terms : TT
    Supply Ability : 100 Sets
    Delivery Time : In stock
    • Product Details
    • Company Profile

    150kgf Digital Rockwell Hardness Testing Machine Manual tester

    Manual Superficial Digital Touch Screen Rockwell Hardness Tester


    Model: XHRS-150
    1. Product Information

    XHRS-150 Digital Display Plastic Rockwell Hardness Tester is a high-tech product with high precision and stable performance. The interface is menu-based, and the operation is simple, intuitive and convenient. The measuring device adopts grating displacement sensor and ARM32-bit chip control system. It is directly displayed on the screen, which is a mechanical and electrical integration hardness testing instrument.


    2. Products Advantages
    a. Adopt grating displacement sensor measurement device: display the results through the LCD screen, and can display and set the test scale, test force, indenter type, dwell time, conversion unit, etc.
    b. The fuselage is made of high-quality cast iron by one-time casting, and is treated with car paint, so the appearance is round and beautiful.
    c. Test force: 588.4, 980.7, 1471N (60, 100, 150kgf) three kinds of test force can be changed at will.
    d. Three kinds of interchangeable worktables: equipped with large flat, V-shaped and small flat worktables, which are convenient for measuring the hardness of different workpieces.

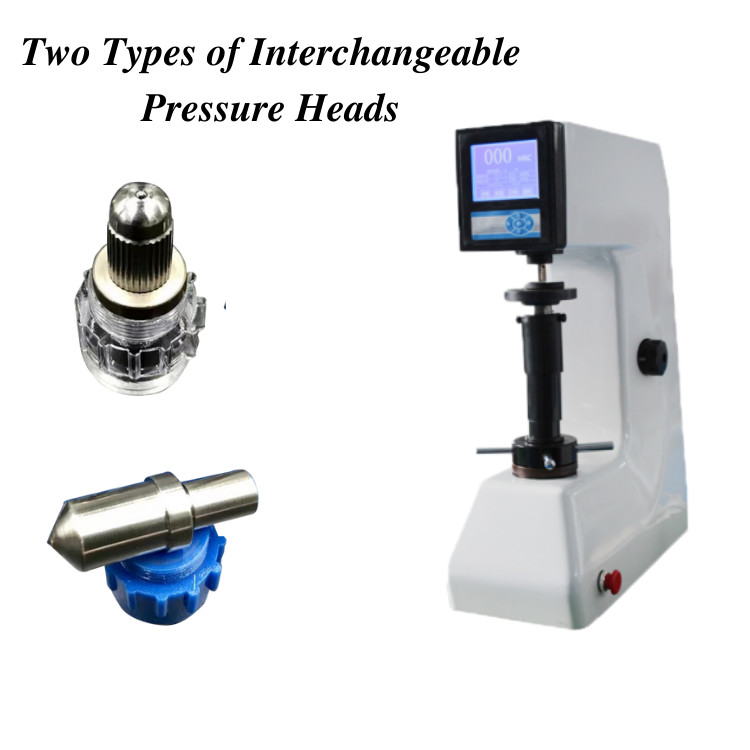

    e. Two kinds of interchangeable indenters: equipped with diamond indenter and 1.5875mm indenter, can measure different hardness

    3. Specifications
    Test Force60,100,150kgf
    Measuring Range70-100HREW,50-115HRLW,50-115HRMW,50-115HRRW
    Maximum Height200mm
    The distance from the center of the indenter to the machine wall130mm
    Hardness Resolution0.1HR
    Dimensions510*290*730mm
    Weight80kg
    Power SupplyAC220V,50Hz

    150kgf Digital Rockwell Hardness Testing Machine Manual tester

    150kgf Digital Rockwell Hardness Testing Machine Manual tester

    150kgf Digital Rockwell Hardness Testing Machine Manual tester

    Packaging & Shipping
