    UV Ultraviolet Light Accelerated Weathering Machine Aging Testing Environmental Temperature Chamber

    Ask Lasest Price
    Brand Name : GC
    Certification : ISO
    Delivery Time : In stock
    Payment Terms : TT
    Supply Ability : 100 Sets
    Price : Negotiated
    Model Number : GC-UV-B
    • Product Details
    • Company Profile

    UV Ultraviolet Light Accelerated Weathering Machine Aging Testing Environmental Temperature Chamber

    Product Description

    Manufacturer Supply UV Accelerated Aging Weathering Testing Machine


    Model: GC-UV-B


    Product Introduction
    The test equipment simulates the damage caused by the sun's ultraviolet light, and the weather resistance test is carried out on the material by exposing the tested material to light under controlled high temperature. It uses ultraviolet lamps to simulate the radiation of sunlight, and simulates dew and rain through condensation and water spraying. In just a few days or weeks, the ultraviolet irradiation equipment can reproduce the effects of outdoors that take months or even years. Damage that takes time to occur, including fading, color change, tarnish, chalking, cracking, cracks, wrinkling, blistering, embrittlement, strength reduction, oxidation, etc. The test results can be used to select new materials and improve existing There is a change in the material, or the formulation of the evaluation material.

    Test Standards
    GB/T14522-1993Accelerated test method for artificial climate of plastics, coatings and rubber materials used in machinery industry products
    11507.1997The paint and varnish coatings are exposed to artificial differentiation, fluorescent UV lamps and water
    GB /T16422.1-2006Test method for exposure to laboratory light sources of plastics
    ASTM D4329Standard Test Method for Fluorescence UV Exposure Testing of Plastics
    GB /T 16585-96UV aging test chamber standard
    ASTM D1148-2007Chinese version of rubber UV light discoloration standard


    Manufacturer Supply UV Accelerated Aging Weathering Testing Machine

    Product Application

    Manufacturer Supply UV Accelerated Aging Weathering Testing Machine
    Product Parameters
    ModelGC-UV-B
    Dimensions of the working chamber (cm)45*117*50CM
    Boundary dimension(cm)70*135*145CM
    Power4.0 (KW)
    Performance index
    Temperature rangeRt+10ºC~70ºC
    Humidity range≥95 %R.H
    Distance between lamps35mm
    Distance between sample and lamp50mm
    Support quantity of the sampleLength 300mm* width 75mm, about 48 pieces
    Ultraviolet wavelengths290nm~400nm UV-A340,UV-B313,UV-C351( instructions at time of order )
    Lamp power40W
    Control system
    Controllortouch screen microcomputer controller
    Illumination heating systemFully independent system, nickel-chromium alloy electric heating heater
    Condensation humidification systemAll stainless steel shallow surface evaporative humidifier
    Blackboard temperatureBimetal blackboard thermometer
    Water supply systemAutomatic control for humidification and water supply
    Exposure methodExposure to moisture condensation, exposure to light radiation
    Safety protectionLeakage, short circuit, over temperature, water shortage, over current protection

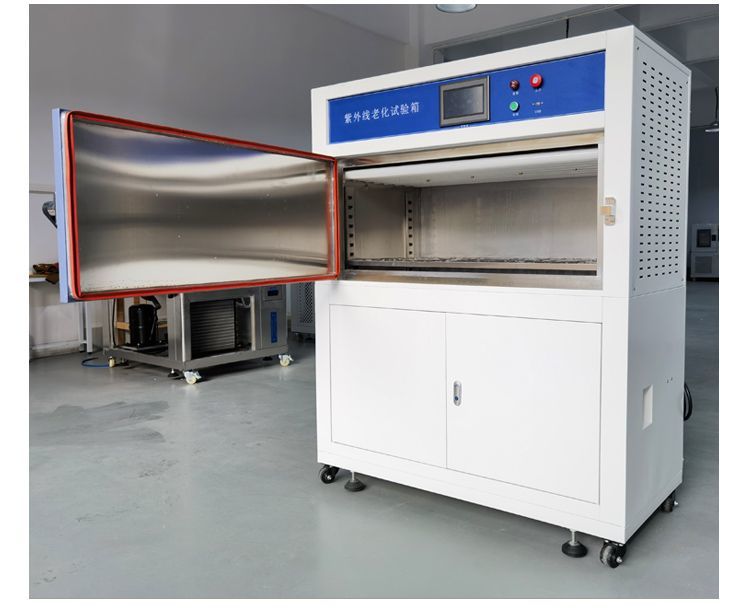

    Detailed Photos

    Manufacturer Supply UV Accelerated Aging Weathering Testing MachineManufacturer Supply UV Accelerated Aging Weathering Testing Machine
    Manufacturer Supply UV Accelerated Aging Weathering Testing MachineManufacturer Supply UV Accelerated Aging Weathering Testing MachineManufacturer Supply UV Accelerated Aging Weathering Testing Machine
