    Single Column Universal Wire Tensile Testing Machine For Plastic 500Kg

    Ask Lasest Price
    Brand Name : GC
    Certification : ISO
    Delivery Time : In stock
    Payment Terms : TT
    Supply Ability : 100 Sets
    Price : Negotiated
    Model Number : GC-WS-500S
    • Product Details
    • Company Profile

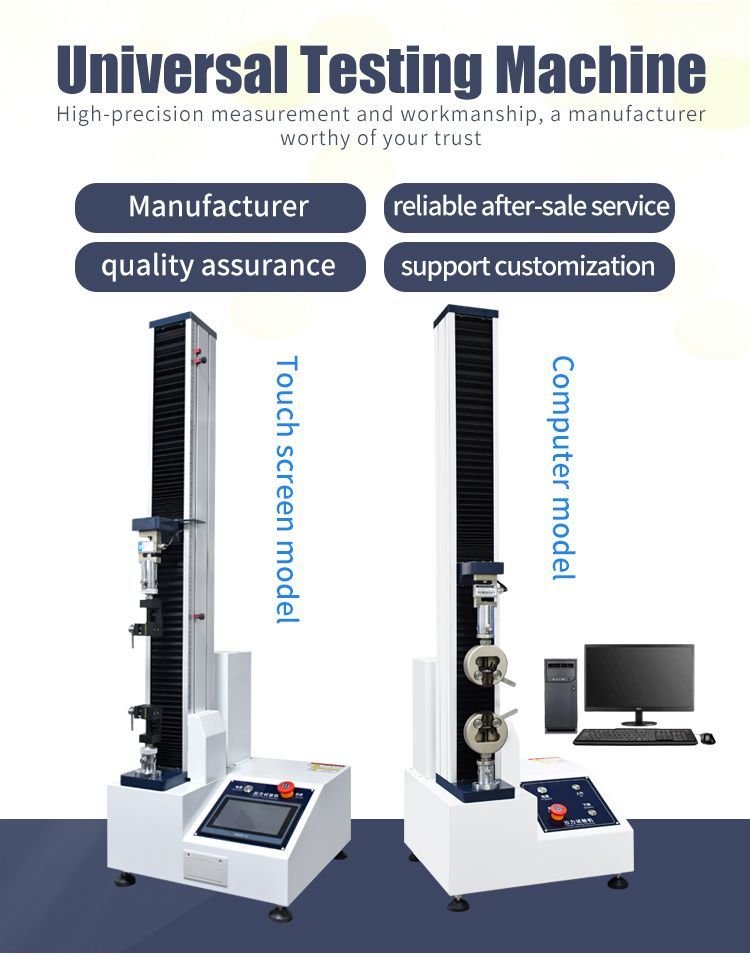

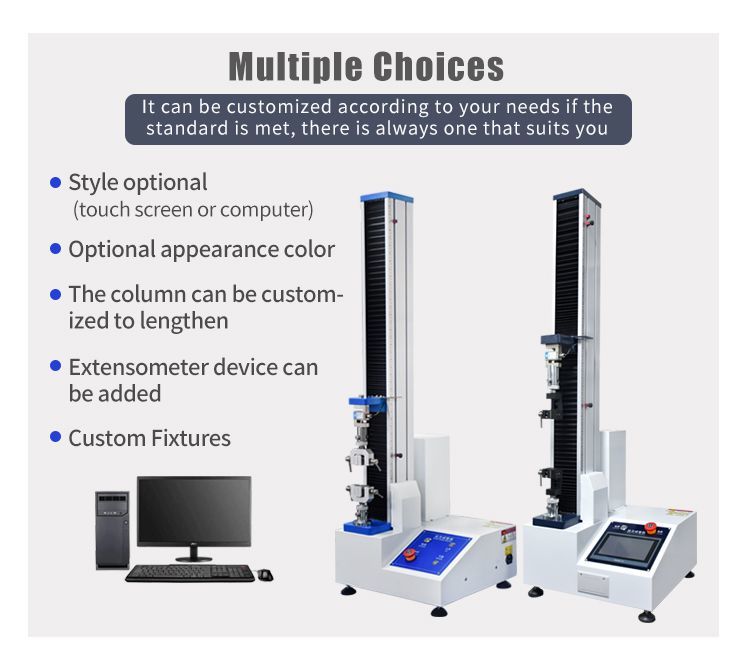

    Single Column Universal Wire Tensile Testing Machine For Plastic 500Kg

    Single Column Tensile Testing Machine For Plastic

    Product Description

    -The single-column universal tensile testing machine is a type of testing device used to measure the tensile strength of materials.
    It consists of a single vertical column with a movable crosshead that applies a tensile force to a sample material.
    -The machine is commonly used in materials testing laboratories to evaluate the mechanical properties of various materials such as metals, plastics, rubber, and composites. The test results obtained from the machine can be used to determine the material's tensile strength, elongation, and other mechanical properties.



    Good Security Single Column Tensile Testing Machine for PlasticGood Security Single Column Tensile Testing Machine for PlasticGood Security Single Column Tensile Testing Machine for PlasticGood Security Single Column Tensile Testing Machine for PlasticGood Security Single Column Tensile Testing Machine for Plastic

    Product Parameters
    ModelGC-WD-500S
    TypeSingle column (gantry-type)
    Load Range0~50KN(0-500KG optional )
    Control MotorAC servo motor
    Servo driversAC drive
    Test Speed0.01~500mm/min
    Power Accuracy≤0.5%
    Resolution1/250000
    Power UnitN,kg,Lb,KN...
    ExtensometerProfessional Large Deformation Extensometer (optional)
    Extensometer accuracy±0.01mm(optional)
    Test Stroke800mm(optional)
    Test width400mm(optional)
    Control modeComputer software control
    Fixture configurationIncluding a set of conventional limit test fixture
    Proctective deviceLeakage protection, overload automatic shutdown protection, travel switch protection, etc
    Protected modeMirco printout
    Power220V/50HZ


    Configuration list:

    NameBrand
    1AC motorTaiwan Delta
    2AC driveTaiwan Delta
    3Low-noise, high-efficiency deceleration systemTurbine worm
    4Ball screw rodRolling Stones (Taiwan)
    5RelayOmron (Delta)
    6Force sensorChina
    7Limit protection switchFOTEK(Taiwan)
    8Control systemAll-digital closed-loop control system
    9EncoderTaiwan Delta
    10High strength rackRolling Stones (Taiwan)
    11computerA set of industrial computers
    12Test fixtureSpecify a set of fixtures
    13toolProvide special tools and checklists required for installation, maintenance and operation
