    Microcomputer Control Desktop Universal Tensile Tester 220V 50Hz High Precision

    Ask Lasest Price
    Brand Name : GC
    Certification : ISO
    Delivery Time : In stock
    Payment Terms : TT
    Supply Ability : 300PCS/Month
    Price : Negotiated
    • Product Details
    • Company Profile

    Microcomputer Control Desktop Universal Tensile Tester 220V 50Hz High Precision

    High Precision Desktop Adhesive Tape Peeling Strength Tensile Tester with 220V 50Hz Package Gross Weight 90.000kg
    Model: GC-WD-500D

    Product introduction

    WD type single column universal material testing machine is specially designed for colleges and universities, scientific research institutes and a new generation of dual space microcomputer control electronic universal testing machine. The design of the main engine and auxiliary equipment of the testing machine is based on the international advanced technology, beautiful appearance, convenient operation, stable and reliable performance. Computer system through the controller, the speed control system to control ac motor rotation, after reduction system to slow down the move beam by precision ball screw pair drive up and down, to complete the sample of tensile, compression, bending, shear, and other mechanical properties test, no pollution, low noise, high efficiency, has a very wide speed range and beams moving distance. In addition, it is equipped with a wide variety of test accessories, and has a very broad application prospect in the mechanical properties test of metals, nonmetals, composite materials and products. This machine is widely used in the material inspection and analysis of building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastic, textile, household appliances and other industries. It is an ideal testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection arbitration and other departments.

    Product Features
    Plastic tensile machine for rubber material tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of the test, but also can be isometric loading, isometric deformation, isometric displacement automatic control test, and has the function of low cycle load cycle, deformation cycle, displacement cycle. Get elongation, tensile strength, bending modulus, elastic modulus, yield strength, net energy, reentry energy, total energy and other indicators. Can equipped with high and low temperature test chamber, high-temperature furnace and other expansion devices.
    It uses PC for data processing and analysis, and it can automatically save the test results. After the test, the test curve can be reset, and curve traversal, or curve comparison and amplification can reproduce the test process. Windows, VISIT platform test software, with strong data and graphics processing function, can immediately print out a complete test report and test curve.


    Test Standard:
    GB/T 1040-2006Tensile Properties Test Methods
    GB/T 1041-2008Test method for compression properties of plastics
    GB/T 9341-2008Test method for flexural properties of plastics
    IS0 527-1993Determination of tensile properties of plastics
    GB/T 13022-91Plastic film tensile test method
    ISO 604-2002Plastics - Determination of Compression
    ISO 178-2004Plastic bending determination
    ASTM D 638-2008Standard Test Method for Tensile Properties of Plastics

    High Precise Desktop Adhesive Tape Peeling Strength Tensile TesterHigh Precise Desktop Adhesive Tape Peeling Strength Tensile Tester
    Parameters
    ModelGC-WD-200D
    TypeSingle column
    Load range100kg, 200kg,300kg, 500kg
    Control motorAC Servo Motor
    Servo driversAC drive
    Test speed0.01~500mm/min
    Power accuracy≤0.5%
    Resolution1/250000
    Power unitN,kg,Lb,KN...
    ExtensometerLarge Deformation Extensometer
    Extensometer accuracy±0.01mm
    Test stroke700mm
    Control modeComputer software control
    Fixture configurationIncluding a set of conventional limit test fixture
    Protective deviceLeakage protection, overload automatic shutdown protection, travel switch protection, etc
    Protected modeComputer printout
    Power220V/50HZ

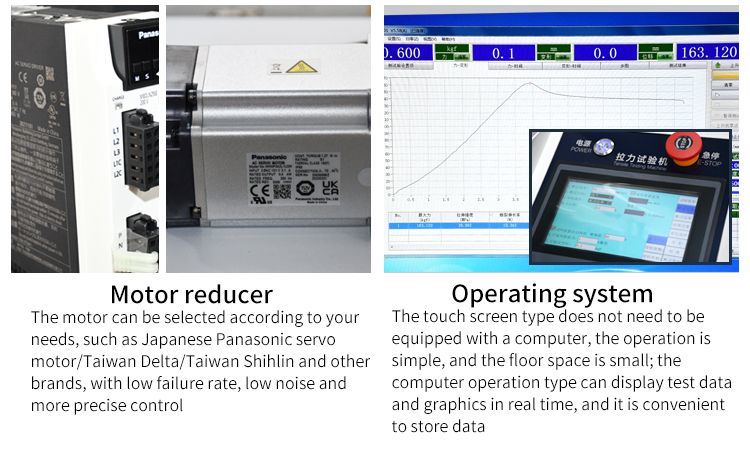

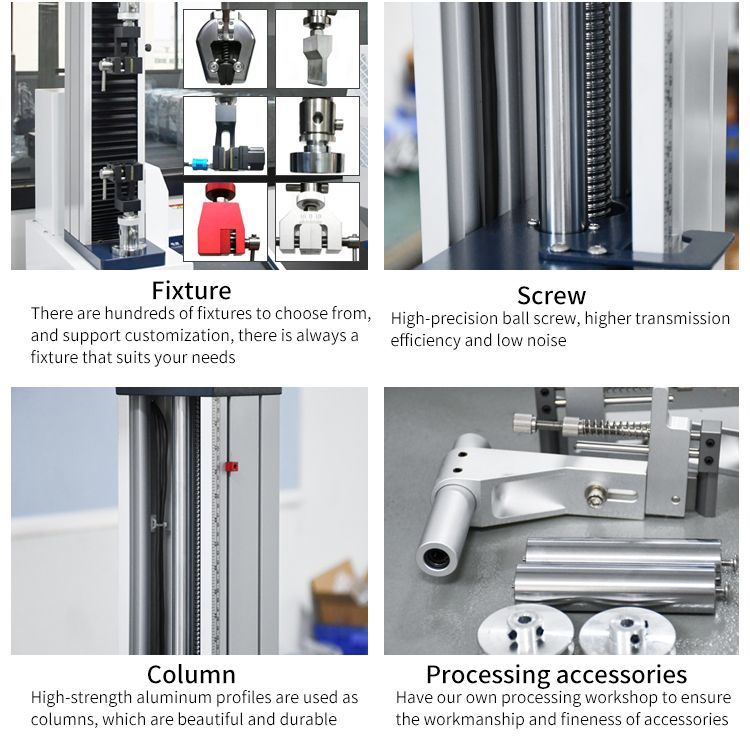

    Detailed Photos


    High Precise Desktop Adhesive Tape Peeling Strength Tensile TesterHigh Precise Desktop Adhesive Tape Peeling Strength Tensile TesterHigh Precise Desktop Adhesive Tape Peeling Strength Tensile TesterHigh Precise Desktop Adhesive Tape Peeling Strength Tensile TesterHigh Precise Desktop Adhesive Tape Peeling Strength Tensile Tester
