    Electronic Universal Double Column Tensile Testing Machines

    Ask Lasest Price
    Brand Name : GC
    Certification : ISO
    Delivery Time : In stock
    Payment Terms : TT
    Supply Ability : 100 Sets
    Price : Negotiated
    Model Number : GC-WS-1000S
    • Product Details
    • Company Profile

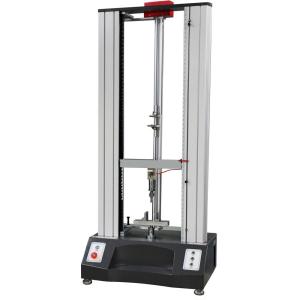

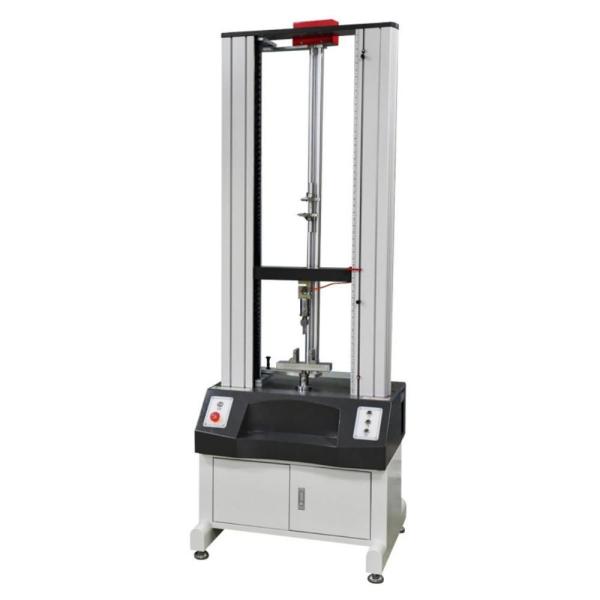

    Electronic Universal Double Column Tensile Testing Machines

    Double-Column Servo Universal Material Tensile Test Machine
    1 Ton/ 2 Ton Electronic Universal Tensile Testing Machine
    Model: GC-WS-2000S
    Product introduction
    Servo universal tensile test machine is suitable for rubber and plastic materials for stretching, compression, bending, shearing, tearing, stripping, etc. It is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber, plastics, textile, home appliances and other industries of material inspection and analysis.

    Test standards

    GB/T 1040-2006Test mothod for tensile properties
    GB/T 9341-2008Test method for bending properties of plastics
    ISO 527-1993Plastics - determination of tensile properties
    GB/T 13022-91Methods of tensile test for plastic films
    ISO 178-2004Plastics bending test
    ASTM D 638-2008Standard test method for tensile properties of plastics
    Specifications
    ModelGC-WS-1000S
    TypeDouble column
    Load range5KN,10KN,20KN
    Control motorAC Servo Motor
    Servo driversAC drive
    Test speed0.01~500mm/min
    Power accuracy≤0.5%
    Resolution1/250000
    Power unitN,kg,Lb,KN...
    ExtensometerLarge Deformation Extensometer
    Extensometer accuracy±0.01mm
    Test stroke800mm
    Test width400mm
    Control modeComputer software control
    Fixture configurationIncluding a set of conventional limit test fixture
    Protective deviceLeakage protection, overload automatic shutdown protection, travel switch protection, etc
    Protected modeComputer printout
    Power220V/50HZ

    1 Ton/ 2 Ton Electronic Universal Tensile Testing Machine1 Ton/ 2 Ton Electronic Universal Tensile Testing Machine1 Ton/ 2 Ton Electronic Universal Tensile Testing Machine
