    Electronic Heat Rubber Mixing Equipment 50 60HRC Roller Hardness

    Ask Lasest Price
    Certification : ISO
    Brand Name : GC
    Delivery Time : In stock
    Payment Terms : TT
    Supply Ability : 100 Sets
    Price : Negotiated
    Model Number : GC-KLJ-2.5
    • Product Details
    • Company Profile

    Electronic Heat Rubber Mixing Equipment 50 60HRC Roller Hardness

    Open Mill Rubber Mixing Machine

    Electronic Heat Rubber Mixing Equipment


    Product catalog


    Rubber factory for the preparation of plastisol, mixing rubber or hot refining, out of a roller exposed rubber refining machinery. The main working parts are two different inwardly rotating hollow rollers or drilling rollers, the device on the operator's side is called the front rollers, can be manually or electrically acted horizontally forward and backward movement, in order to regulate the roller distance, to adapt to the operating requirements; the back rollers are fixed, can not be moved forward and backward. The two rollers are generally the same size, each with a different speed relative rotation, raw rubber or rubber with the rotation of the rollers are rolled into the gap between the two rollers, by the strong shear effect and achieve the purpose of plasticising or mixing. Openers are also used in plastics processing and other sectors.

    Product Parameters
    Product NameOpen Mill Rubber Mixing Machine
    Item modelGC-KLJ-2.5
    Conrtol modeKeystoke Control
    Machine size750*380*×600mm
    Spacing display methodScale
    Roller width230mm
    Roller hardess50 ~ 60HRC
    Roller HandlingMirror Polished Chrome
    Rotating speed10-40r/min
    Roller temperatureNormal temperature/normal temperature -250 ºC
    Temperature uniformity2.5 °C
    Special functionEmergency stop
    Total weight≈128kg
    PowerAC220V, 2.2KW

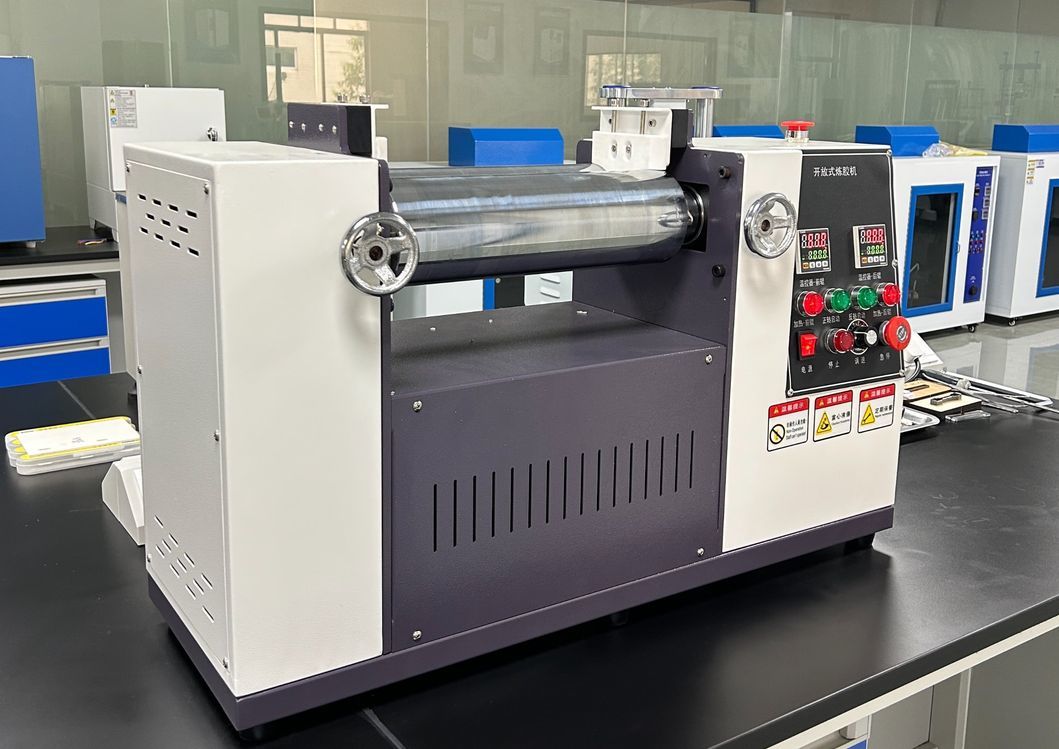

    Detailed Photos
    Electronic Heat Rubber Mixing Equipment
