    IZOD Impact Electric Plastic Rubber Testing Equipment Sample V Notch Machine

    Ask Lasest Price
    Brand Name : GC
    Certification : ISO
    Delivery Time : In stock
    Payment Terms : TT
    Supply Ability : 100 Sets
    Price : Negotiated
    Model Number : GC-QK-D
    • Product Details
    • Company Profile

    IZOD Impact Electric Plastic Rubber Testing Equipment Sample V Notch Machine

    Electronic Sample Impact Notch Machine
    Product Description

    Model: GC-QK-D

    Product introduction


    The plastic electric notch prototype machine(BST-QK-D) is a sample making equipment used in the impact toughness test of non-metallic materials by IZOD and simply supported beam impact testing machine. Laboratories of scientific research institutions, colleges and universities, non-metallic materials manufacturers and other units to make notched samples can use the impact notching machine.

    Reference standard for tool notch of prototype


    ISO180-2000 Plastics - Hard materials - Determination of IZOD impact strength
    GB/T1843-2008 Rigid plastics - IZOD impact testing machine
    JB/T8761-1998 Impact test machine for plastic IZOD
    ASTM D256-2010 Test Method for Determining IZOD Pendulum Impact Strength of Plastics
    ISO179-2000 Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams
    GB/T1043-2008 Impact Test Method for Rigid Plastic Simply Supported Beam
    JB/T8762-1998 Plastic Simply Supported Beam Impact Testing Machine

    Technical index


    Table stroke: >160mm
    Feed speed:30mm/min
    Sample type: Type 1, Type 2, Type 3
    Gap type: Type A, Type B (optional), Type C (optional)

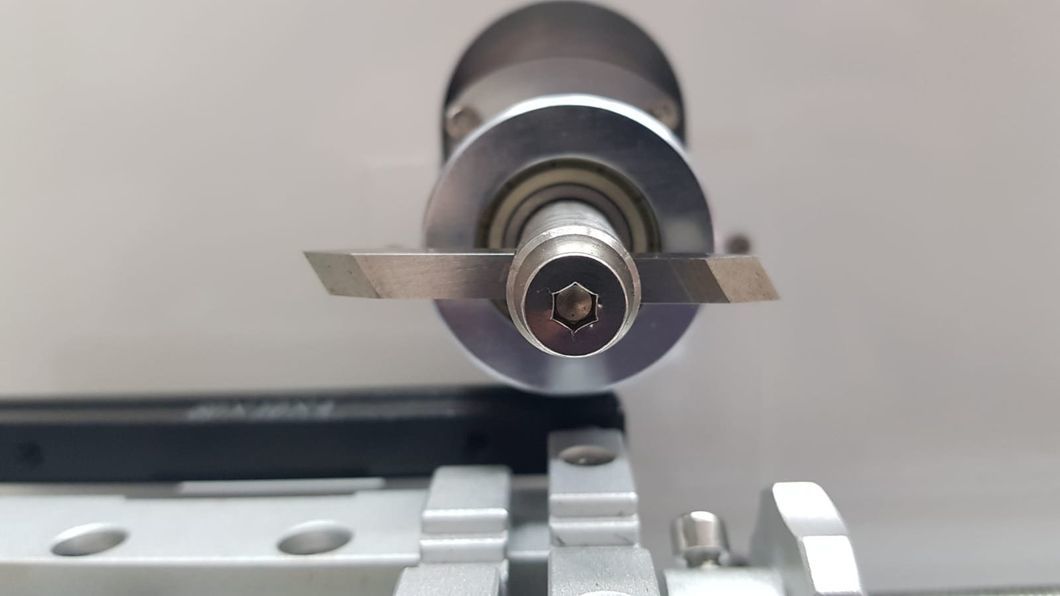

    Tool parameters of plastic notch prototype machine

    TypeA45±1° r=0.25±0.025
    TypeB45±1 r=1.0±0.025
    TypeC145±1 r=0.1±0.02
    TypeC2thickness 1=2±0.1 r<=0.1
    TypeC3thickness 2=0.8±0.1 r=0.2±0.05

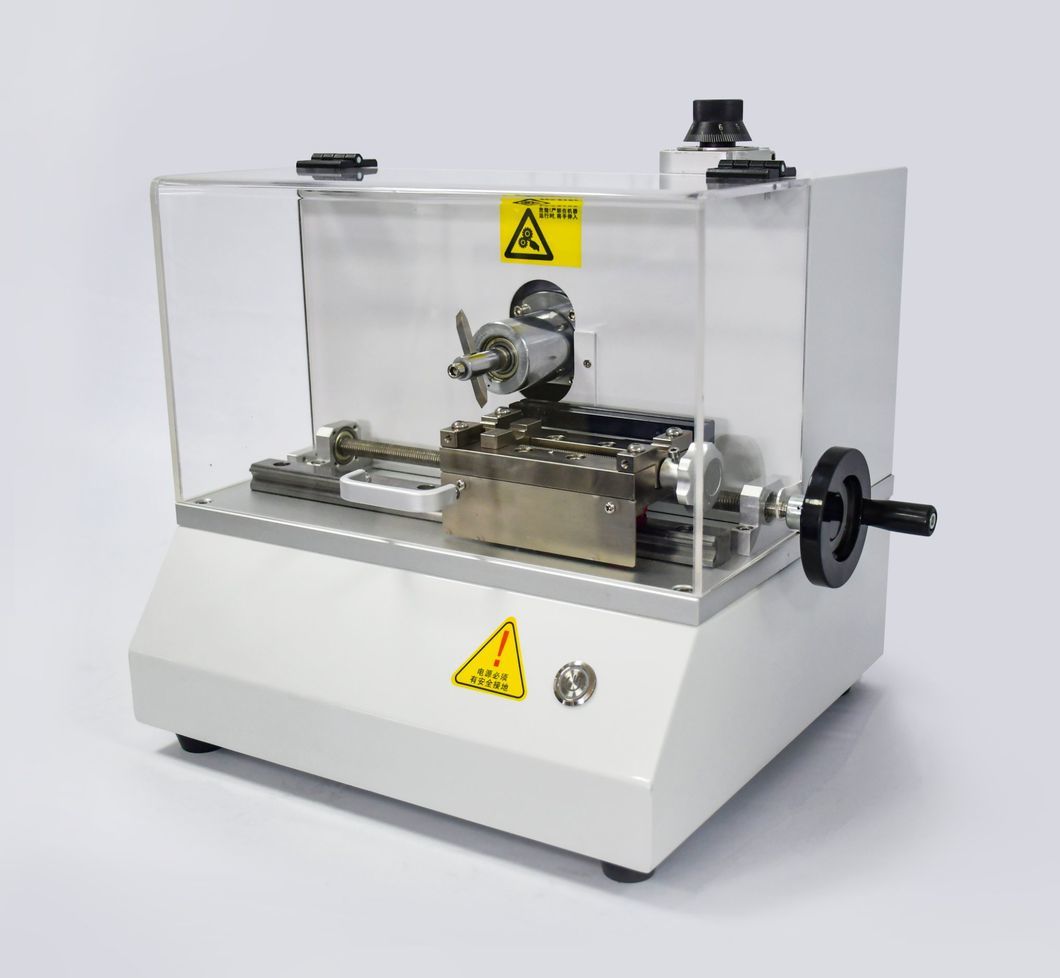

    Detailed Photos

    Hot Selling Favourable Price Electronic Notch Machine Sample Notch MachineHot Selling Favourable Price Electronic Notch Machine Sample Notch Machine
