Horizontal Layout Type Laboratory Two Roll Mill Machine for Rubber Mixing

Product Description

-The two roll rubber open mill rubber mixing machine is a type of rubber processing equipment that is used to mix and process rubber compounds. It consists of two horizontally placed rolls that rotate in opposite directions at different speeds.
-The rubber material is fed into the gap between the rolls, which are adjustable to control the thickness of the sheet being produced. The rolls are heated and cooled to control the temperature of the rubber compound during mixing.
-The open design of the machine allows for easy access and monitoring of the mixing process.
-This type of machine is commonly used in the rubber industry for producing various rubber products such as tires, belts, hoses, and seals.

.

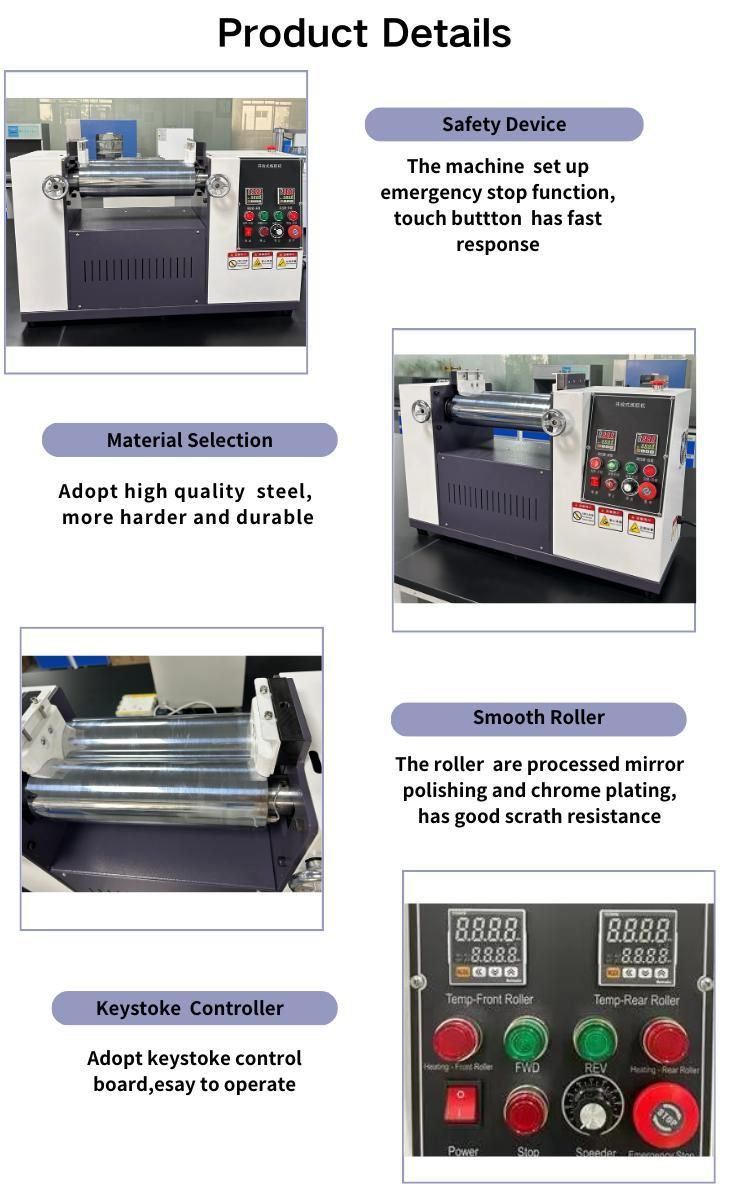

Detailed Photos

Product Parameters

Product Name	Open Mill Rubber Mixing Machine
Item model	GC-6015D-3
Conrtol mode	Keystoke Control
Machine size	750*380*×600mm
Spacing display method	Scale
Roller width	300mm
Roller hardess	50 ~ 60HRC
Roller Handling	Mirror Polished Chrome
Rotating speed	10-40r/min
Roller temperature	Normal temperature/normal temperature -250 ºC
Temperature uniformity	2.5 °C
Special function	Emergency stop
Total weight	≈128kg
Power	AC220V, 2.2KW

Attention and maintenance

Precautions:

-Local timer and motor power input according to the label.

-Operators must be familiar with the operation and maintenance methods of the machine, and pay attention

to use.

-The storage environment must be kept clean and free from humidity.

-When relocation is necessary, please pay attention to handling, not to damage the machine parts.

-Be careful when replacing fixtures to avoid falling and damaging the parts.

-Regularly check whether the drive belt is loose and adjust it.

-Please apply for inspection and calibration regularly to ensure accuracy.
